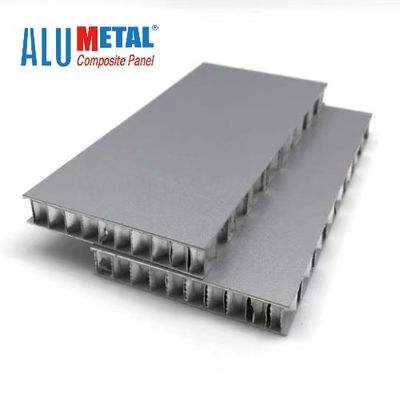

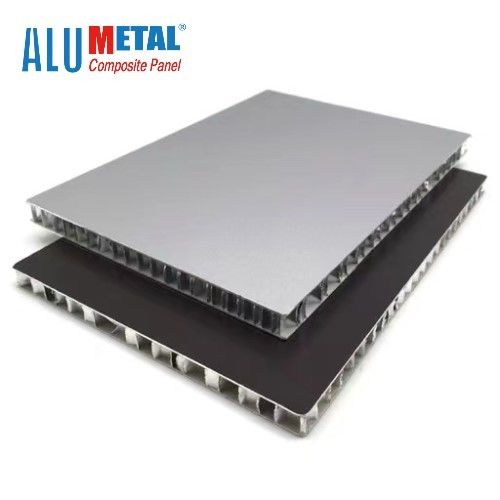

1220x2440mm 3mm ACM Aluminum Honeycomb Panel Mill Coating Composite Lightweight 3003
Product Details:
| Place of Origin: | Shanghai China |
| Brand Name: | Alumetal |
| Certification: | CE/ISO9001 |
| Model Number: | ALUMETAL-AHP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | Wholesales For Aluminum Honeycomb Core Panel 4x8 | Size: | 1220mmx2440mm Or Customized Sizes |
|---|---|---|---|
| Project Solution Capability: | 3D Model Design, Graphic Design, Total Solution For Projects, Cross Categories Consolidation, NONE, Others | Application: | Exterior, Decorative Material |
| Design Style: | Contemporary | Usage: | Outdoor |
| Color: | Customer's Requirements | Panel Thickness: | 3mm-500mm |
| Coating: | PE PVDF MILL | Aluminum Thickness: | 0.5mm-3mm |
| Core: | HONEYCOMB CORE (AA3003 5052) | Length: | Max 6000mm |
| High Light: | 1220x2440mm Aluminum Honeycomb Panel,3mmAluminum Honeycomb Panel Mill coating,acm aluminum composite lightweight 3003 |
||
Product Description
Wholesales For Aluminum Honeycomb Core Panel 4x8
Aluminum honeycomb panel is an environmentally friendly lightweight material. The aluminum honeycomb panel is used as the center layer of the sandwich panel. Aluminum honeycomb panel has good mechanical properties. Aluminum honeycomb panels are used in various fields such as construction industry, covering, public transportation and stone support.
| Aluminum Alloy | AA3003 H18, AA5052 H18 |
| Total Panel thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
| Aluminum Skin thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Coating: | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
| Length: | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness: | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
| Honeycomb Core Cell Size: | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
| Honeycomb Core Cell Side Length: | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
| Edge: | Close Edge, Open Edge |
Alumetal Color Chart.pdf
Q1.What is your MOQ,Delivery Time, Payment?
A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks
2. Delivery Time: within 15 days after receiving deposit
4. Payment: 30% TT in advance ,70% against BL of copy or LC
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business cooepration.
Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm
3. Panel Thickness:2mm-6mm; recommend 3,4mm
4.Aluminum thickness:0.05-0.5mm
Q5.Do you offer sample?
A5: Yes, samples are available if you are interested in our product
